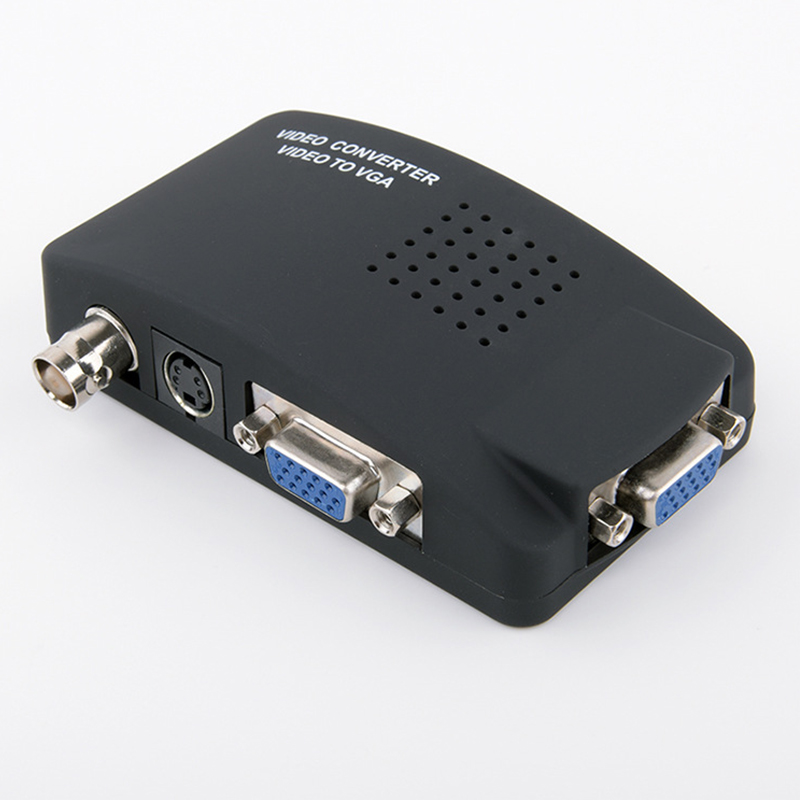

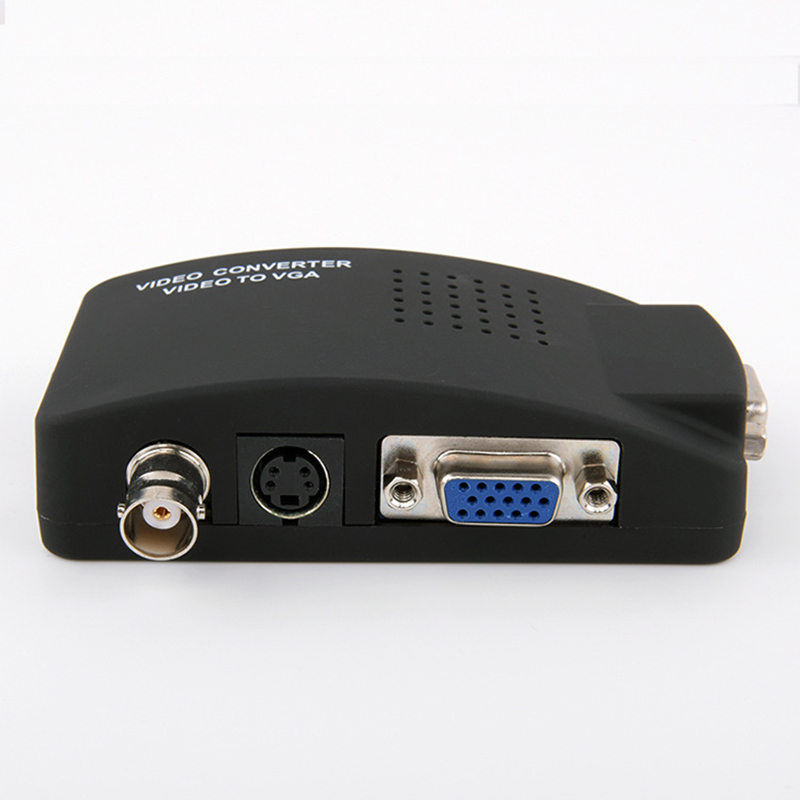

HT-BN1001

This product (BNC to VGA) is a non-destructive video converter designed for security, medical and home users. It can convert video signals into VGA signals of various resolutions from 800X600 to 1920X1200 using advanced digital image processing technology A variety of VGA resolution output, in order to achieve the back-end display can be achieved point-to-point display to show the perfect picture.
The product is widely used in DVR back-end monitors, video teaching equipment, subway engineering, industrial, etc., to replace the traditional CRT monitor, small size, clear picture quality, plug and play, simple and convenient.
Product introduction
1: product features

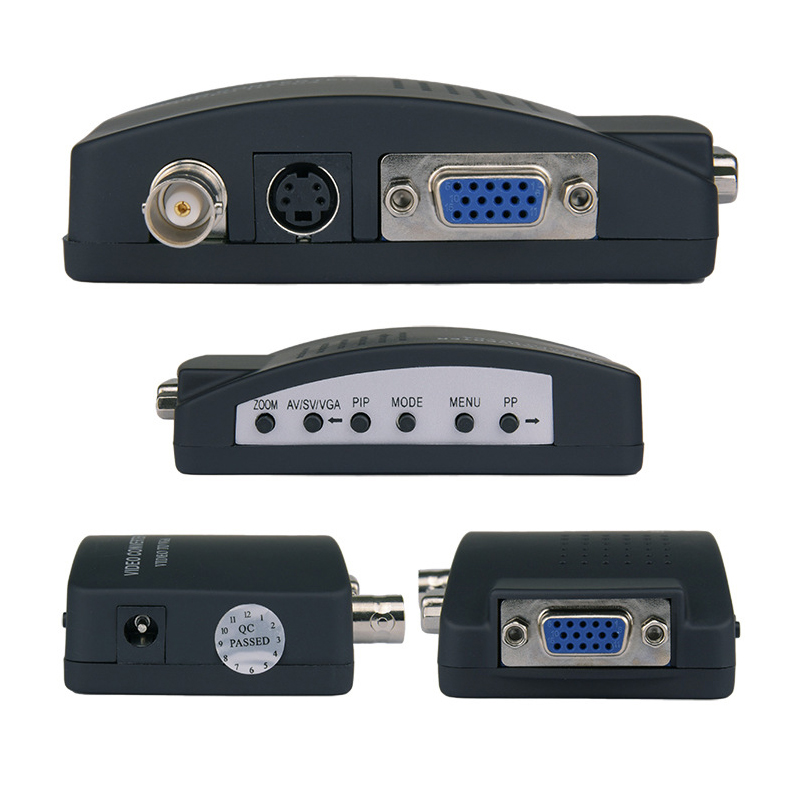

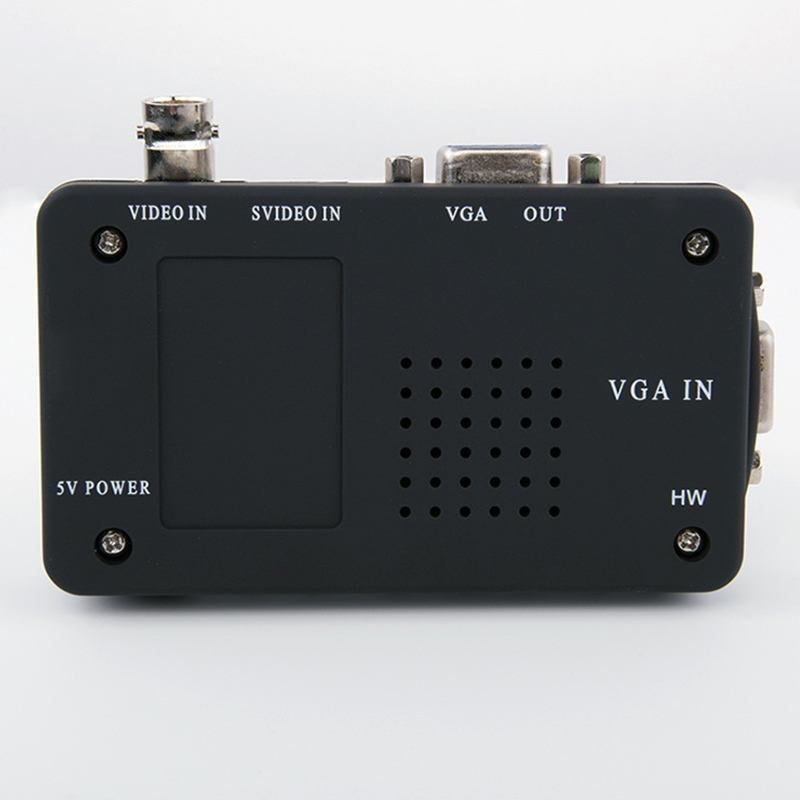

Input Interface: 1xBNC, 1xS-Video, 1xVGA
Output interface: 1xVGA

2: Output resolution
800X600 @ 60Hz, 800X600 @ 75Hz, 1024X768 @ 60Hz, 1280X1024 @ 60Hz, 1440X900 @ 60Hz, 1680X1050 @ 60Hz, 1920X1080 @ 60Hz, 1920X1200 @ 60Hz
3: Input signal format
BNC and S-Video inputs: Automatic identification PAL, NTSC VGA input: BYPASS

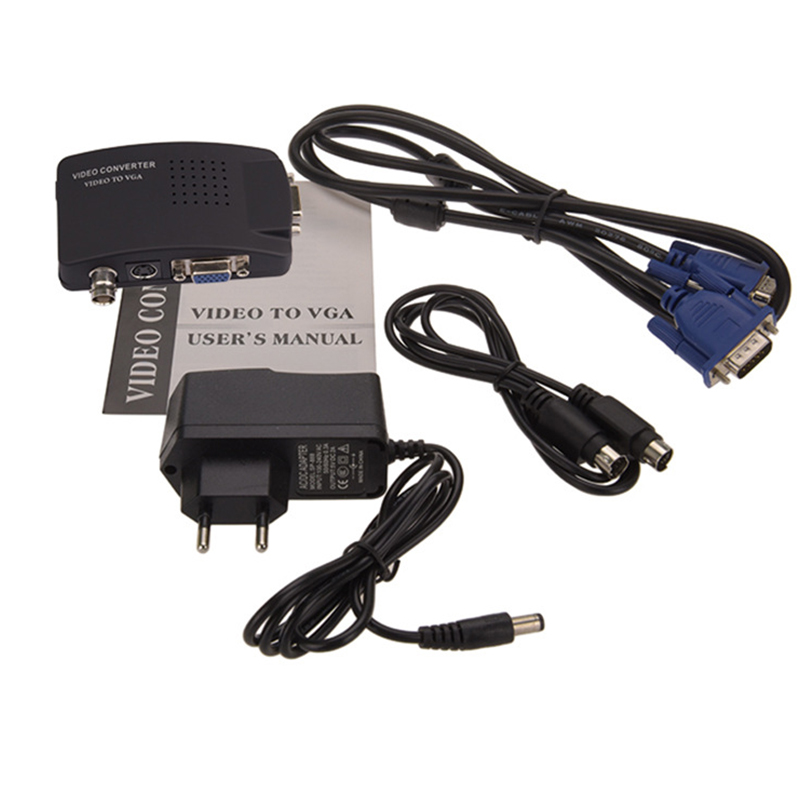

Product accessories
BNC to VGA host 1
5V / 1A power adapter 1
S-VIDEO line a
product manual
