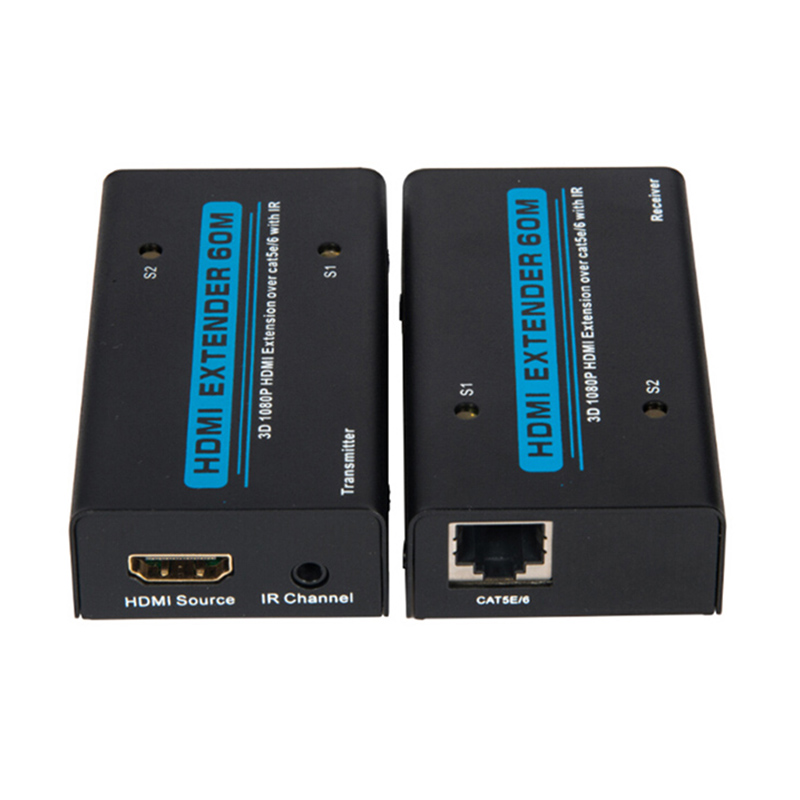

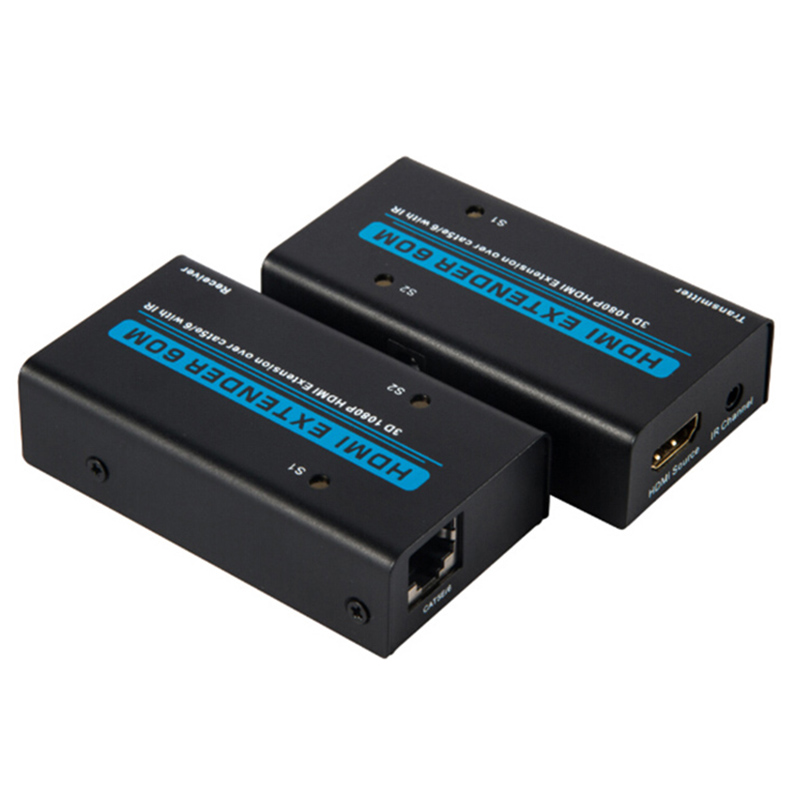

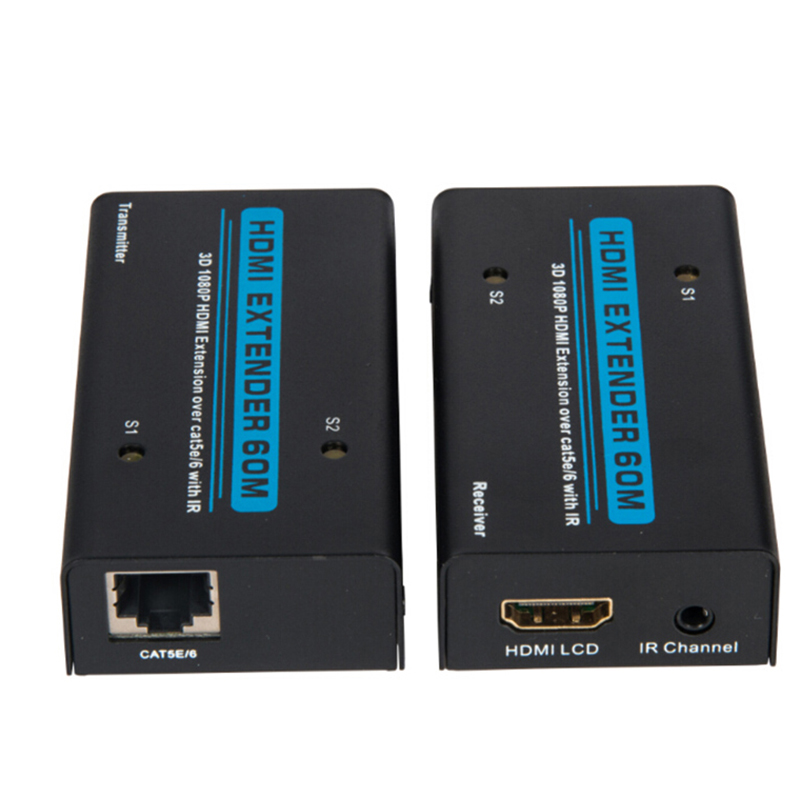

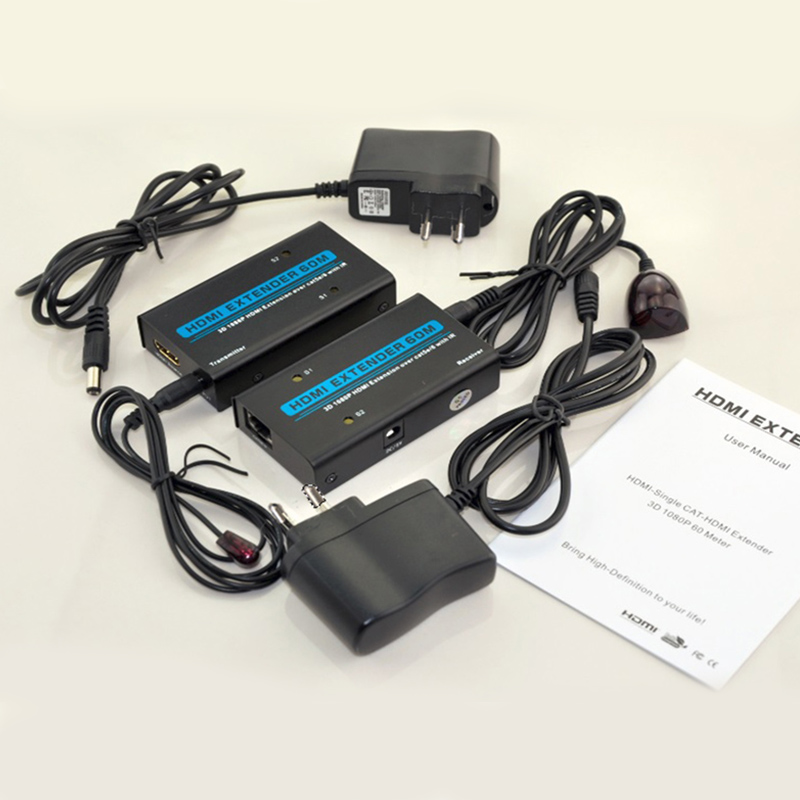

HDMI/VGA/AV Converter

HT-HMYD61(With IR Sensor）

Description: HDCP 1.2 protocol compliant;
2) Signal transmission :cat5e or cat-6(recommended) cables up to 60 meters instead of HDMI cables are connected between TX and RX Extender;
3) There is a HDMI Loop out at the HDMI TX;
4) Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i;
5) Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i;
INQUIRY EMAIL

Specifications

Product	HDMI extender over cat5e
Length of CAT-6 cable Transmitter and Receiver	Up to 60 meters
HDMI Input	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input	DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output	LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth	165MHz
Max baud rate	4.95Gbps
Input Video signal	0.5~1.5Volts p-p
Output DDC signal	5Volts p-p (TT1L)
Input/Output HDMI cable distance	≤20m AWG26 HDMI standard cable
Max working current	800mA
Power adapter format	-Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range	-15 to +55℃
Operating Humidity range	-5 to 90%RH (No Condensation)
