HT-HM4K108D

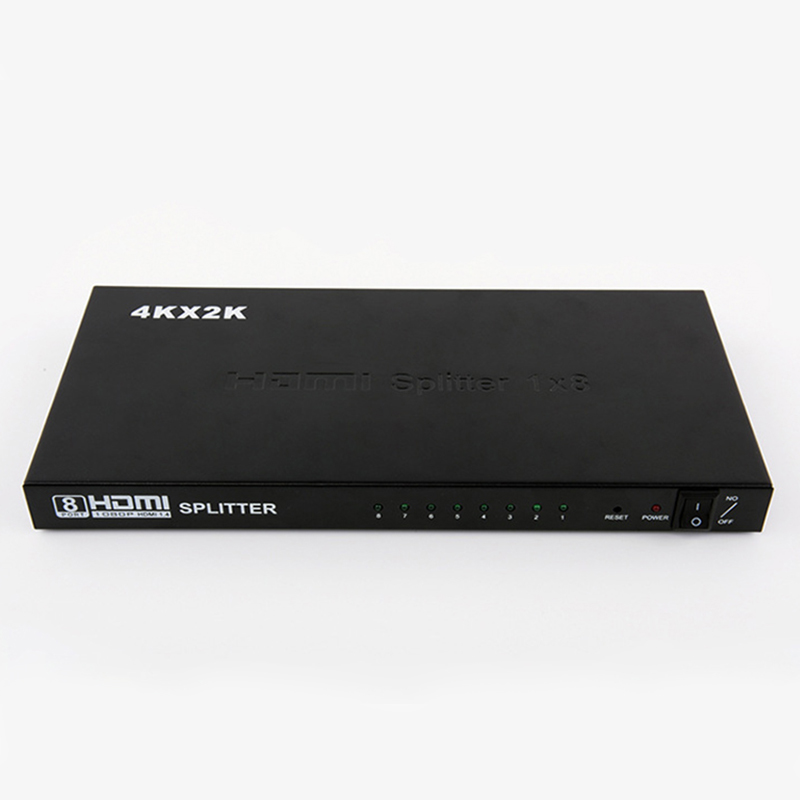

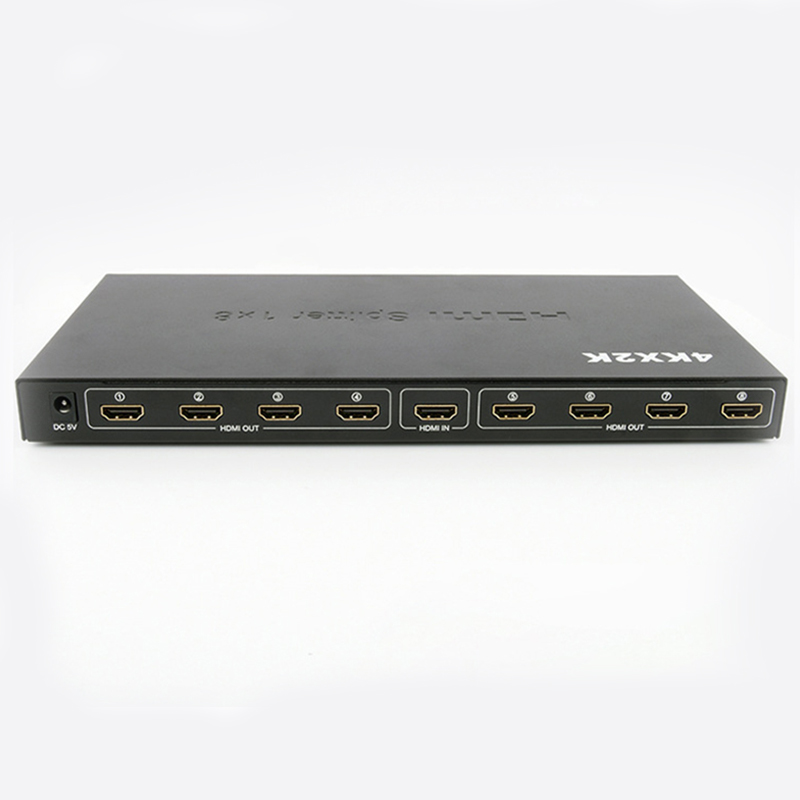

  • Description: 8 Port HDMI Splitter Full HD 1X8 Hub 4k HDMI Splitter 1 in 8 out
    Support high resolution up to 4096X2160/30Hz
    Metal housing, Black color.
    Support 8/10/12 bit deep color
    Support AWG26 HDMI standard cable:
  • INQUIRY   EMAIL


HDMI version HDMI 2.0
HDMI resolution 24/50/60fs/1080p/4Kx2K(4096x2160@30Hz)/1080i/720p/576p/576i/480p/480i
Support video color format 24bit/deep color 30bit,36bit
Support audio format

DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth 600MHz
Max baud rate 6Gbps
Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal

5Volts p-p (TTL)

Input cable distance ≤15m AWG26 HDMI cable
Output cable distance ≤25m AWG26 HDMI cable
Max working current 1.58A
Power adapter format..Input Input: AC (50HZ, 60HZ) :100V-240V; Output: DC12V/2A
Operating Temperature range

(-15 to +55°C)

Operating Humidity range 5 to 90%RH (No Condensation)
Dimension (L x W x H) 276x136x24 (mm)
Weight 660g
