HDMI Switch/Splitter

  • HT-LSW03
  • HT-LSW03
HT-LSW03HT-LSW03

HT-LSW03

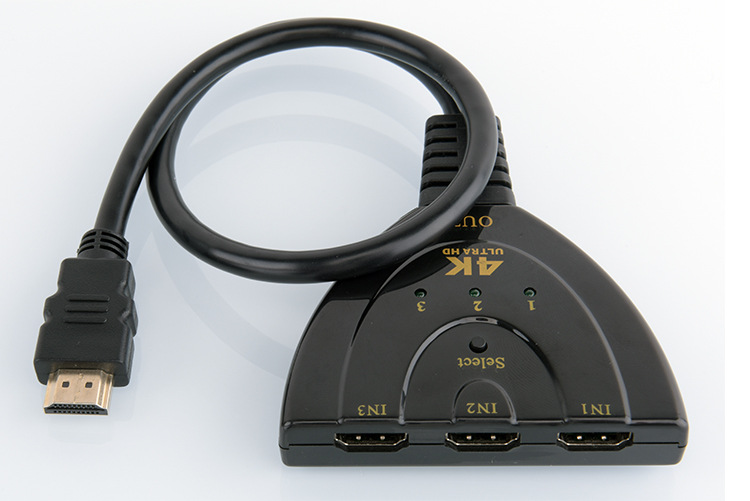

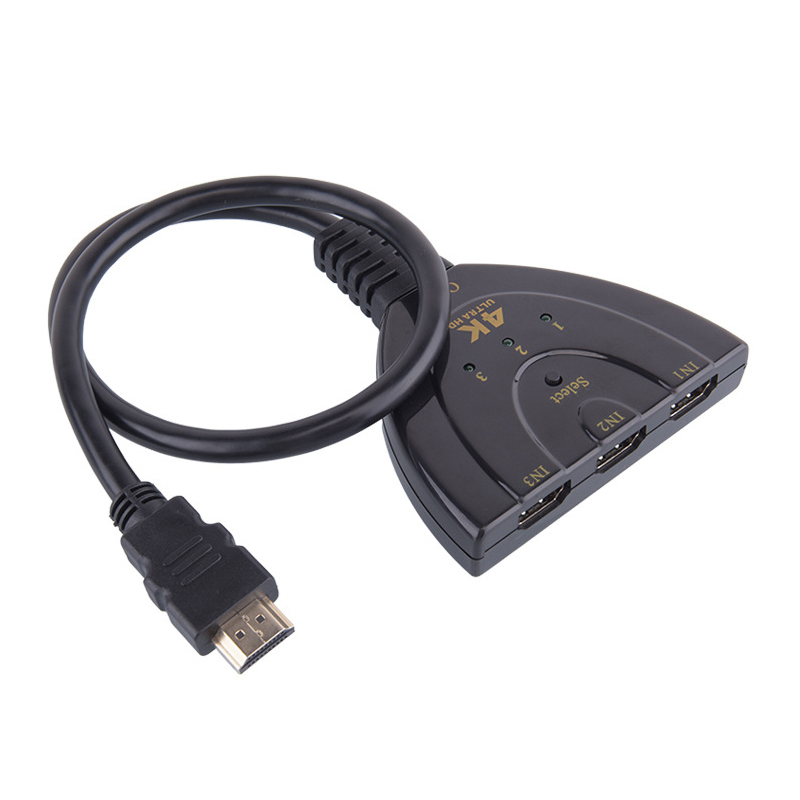

  • Description: 4K HDMI Switch 3 in 1 out Pigtail Switcher
    Resolution:4Kx2K @30Hz
    Cable length :50CM
    Video bandwidth: 2.5Gbps
    Version:HDMI 1.3
    Transmission distance: 25m
  • INQUIRY   EMAIL

1. Signal input/output Input video signal: 0.5-1.0 volts p-p Input DDC signal: 5 volts p-p (TTL) Single-channel connection signal Maximum range: 4Kx2K,1080P Output video signal: HDMI1.3b+HDCP1.0/1.1
2, support video format VGA: 640x480, 800x600, 1024x768, 1920x1200 DTV / HDTV: 480i / 576i / 480p / 576p / 720p / 1080i / 1080P,4Kx2K
3, digital signal input / output HDMI support: HDMI 1.3
4, operating frequency Up to 250MHz field frequency 30Hz video amplification bandwidth 2.5Gpbs/250MHz HD support (HDTV) interlaced (50 & 60Hz) 480i, 576i, 1080i progressive scan (50 & 60Hz) 480P, 576P, 720P, 1080P, 4k
