HDMI Switch/Splitter

  • HT-LSW06
  • HT-LSW06
  • HT-LSW06
  • HT-LSW06
HT-LSW06HT-LSW06HT-LSW06HT-LSW06

HT-LSW06

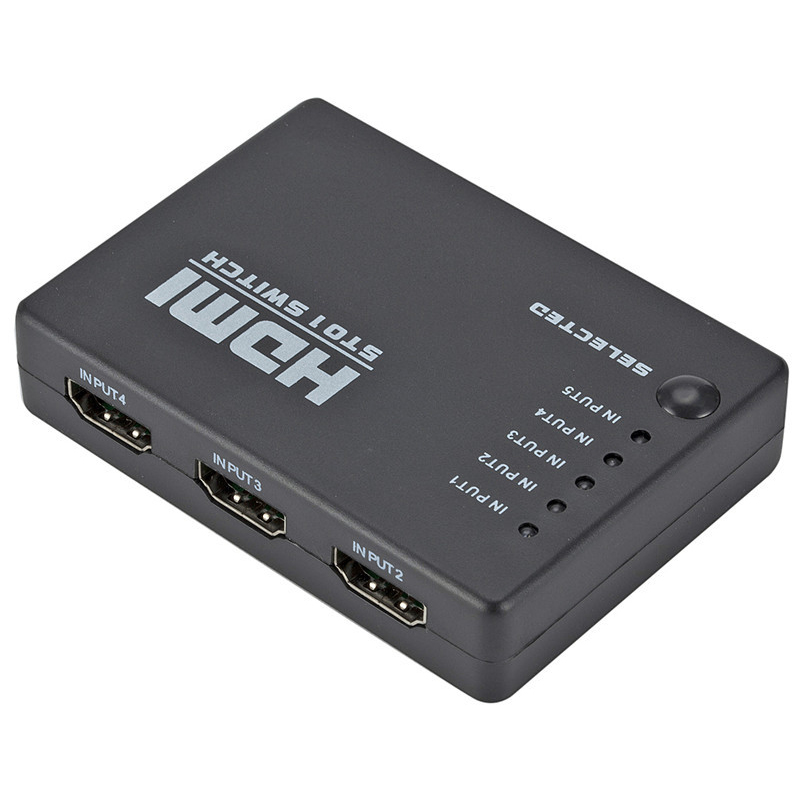

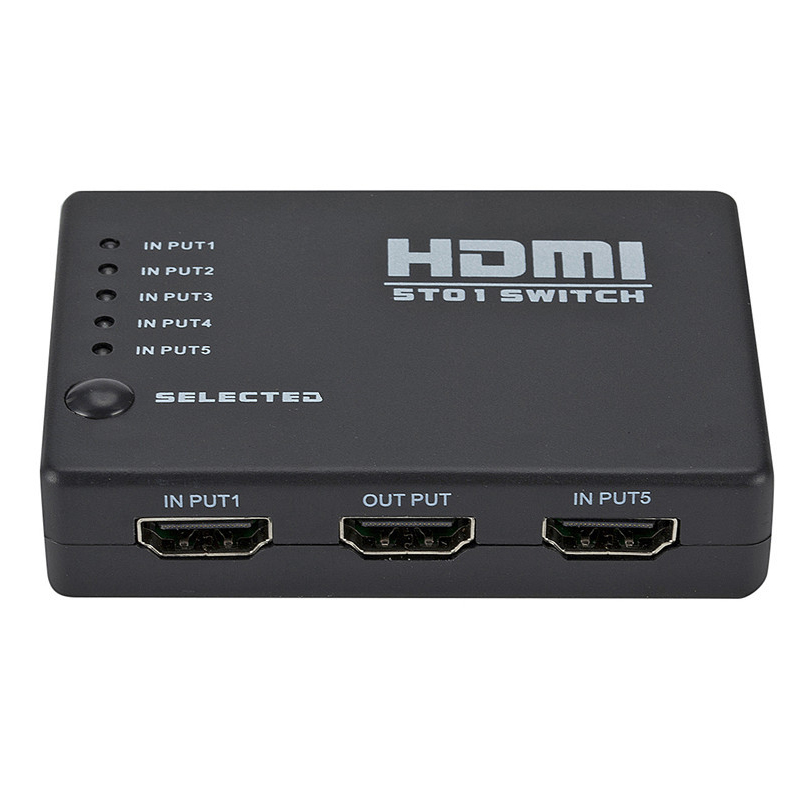

  • Description: HDMI Switch 5 IN 1 OUT 1080P. It is compatible well for HD-DVD, Sky-HD, STV, PS3, Xbox 360, etc, which has not only key-press-switching function, but also has IR remote control and intelligent function.
  • INQUIRY   EMAIL

Support HDMI 1.3b.
Full HD 1080P.
Support 12-bit deep color.
High performance up to 2.5Gbps.
IR extender receiver(included).
IR remote control(included).
No power needed(If the input equipment is standard, otherwise power needed).
Multifunction on switching: intelligent or mechanical.
Support uncompressed audio such as LPCM.
Support compressed audio such as DTS Digital, Dolby Digital.

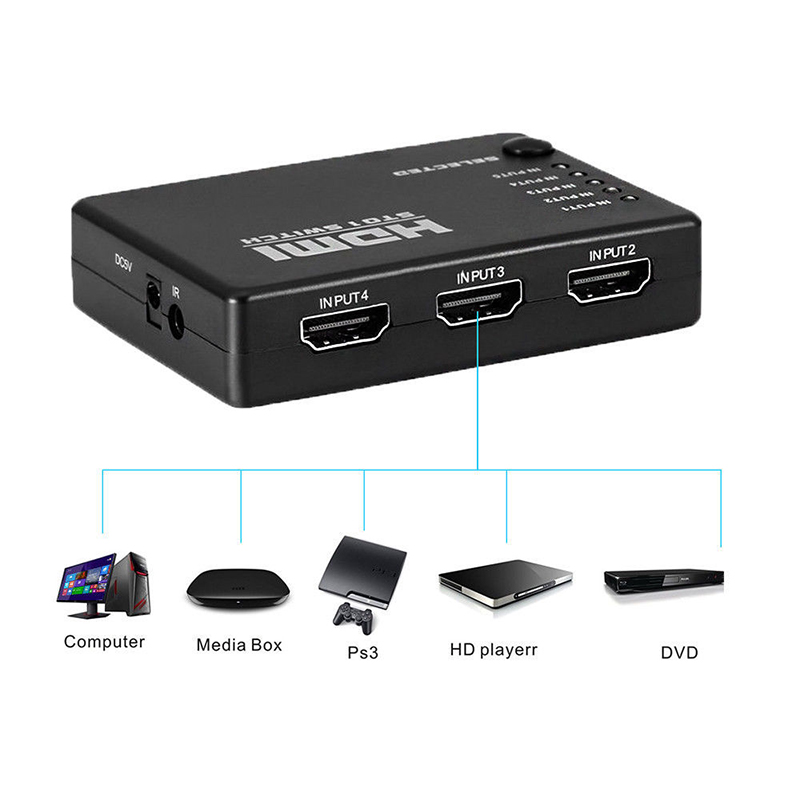

It is compatible well for HD-DVD, Sky-HD, STV, PS3, Xbox 360, etc.
HDCP pass-through.

Specifications:
Input DDC Signal: 5 volts p-p(TTL)
Output Video: HDMI 1.3b
Maximum Single Link Range: 1920 * 1080p
Vertical Frequency Range: 50/60Hz
Video Amplifier Bandwidth: 2.5Gbps/250MHz
Resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Operating Temperature: 0℃ to + 70℃
Operating Humidity: 10% to 85% RH
Storage Temperature: -10℃ to + 80℃
Storage Humidity: 5% to 90% RH
Consumption(Max): 5W
Item size: 8 * 5.8 * 1.8cm
Item weight: 90g

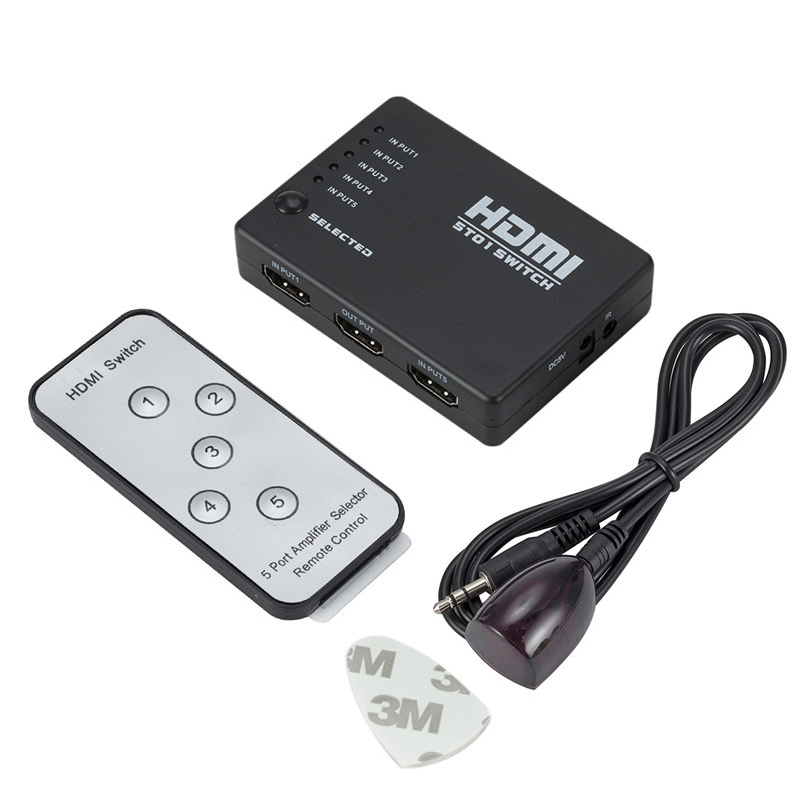

Package Included:
1 * HDMI Switcher
1 * Romote Control
1 * IR Extender Receiver
1 * User Manual
