HDMI Switch/Splitter
HT-LSW05

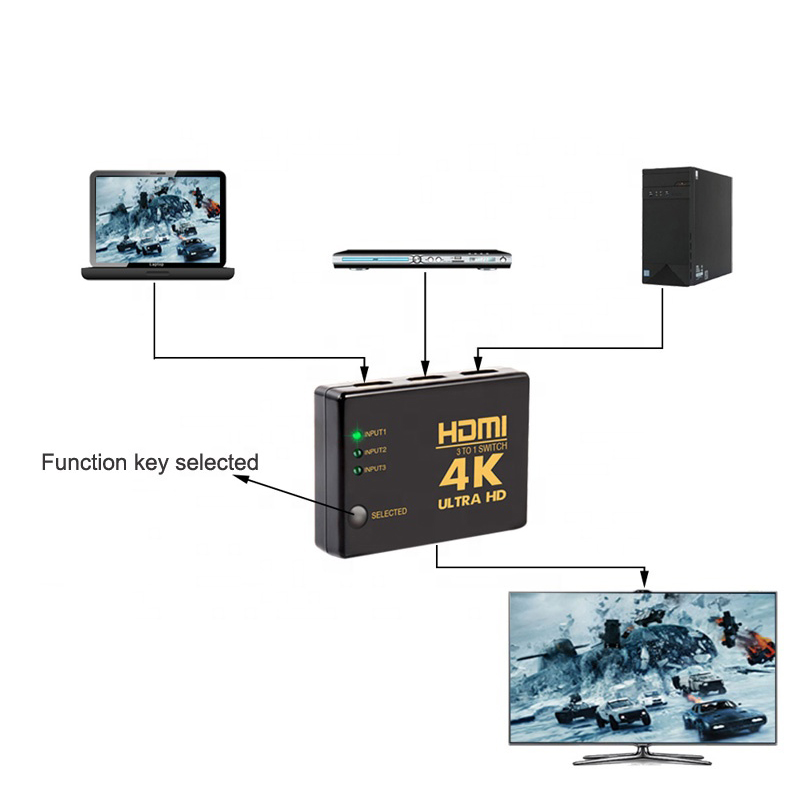

- Description: 4Kx2K HDMI Switcher HDMI 3 in 1 Out switcher can transmit high definition video (4K * 2K) and digital audio transmission from any source port to the display. The source ports of all input devices can match HD video ports at the same time, compatible with HD-DVD, SKY-STB, PS4, Xbox6 etc.
-
Specifications
* Input video signal: 0.5-1.0 volts p-p
* Input DDC signal: 5 volts p-p (TTL)
* Maximum range of single connection signal: 4K * 2K, 1080P
* Output video signal: HDMI1.4b + HDCP1.0 / 1.1.
* Video amplification bandwidth: 2.5Gpbs / 250MHz
* Maximum supported length of input HDMI cable: 15 meters
* Maximum supported length of output HDMI cable: 15 meters
* Supported resolutions:
Interlaced (50 / 60HZ): 480i, 576i, 1080i;
Progressive (50 / 60HZ): 480p, 576p, 720p, 1080p, 4K * 2K
Audio and video input port: 3 * HDMI
Audio and video output port: 1 * HDMI
